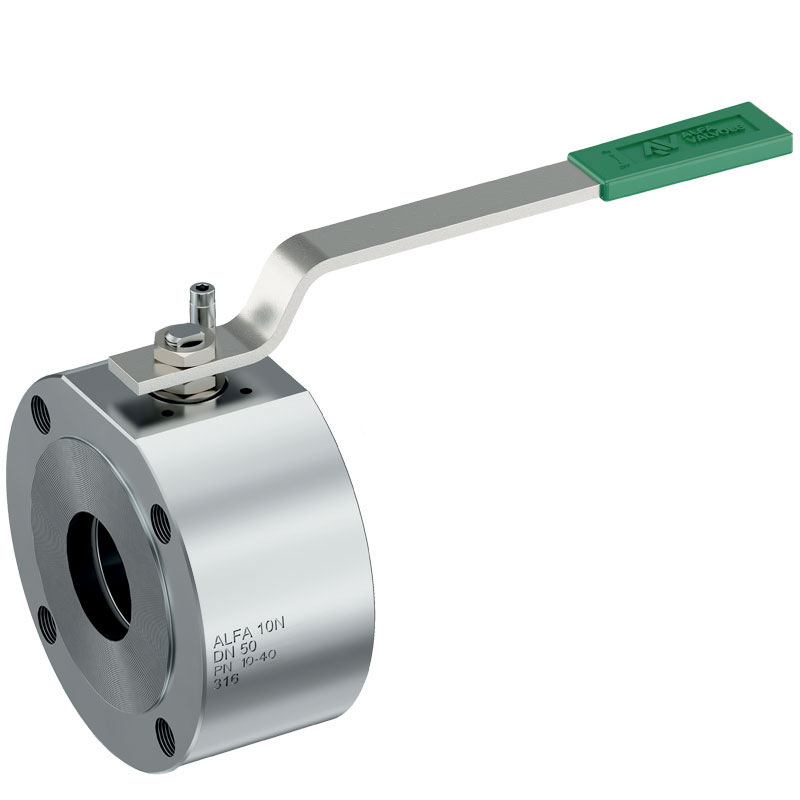

ALFA 10N PN 10-40 / ANSI 150

1. Wafer type ball valve. Compact, simple and strong design

Flanged

ALFA 10N PN 10-40 / ANSI 150

Wafer type ball valve. Compact, simple and strong design

Wide range of application, industries and medium.
Available in different materials (bar stock or casting).

• Size range: 1⁄2” ≤ Ø ≤ 4” / 15 ≤ DN ≤ 100
• Pressure range: PN 10-40 / ANSI 150
• Temperature range: -40°C ≤ T ≤ +200°C (standard execution)

•   Dimensions
•   Parts

	DN	15	20	25	32	40	50	65	80	100	125	150	200
	ø”	½”	¾”	1”	1¼”	1½”	2”	2½”	3”	4”	5”	6”	8”
	ø E	14	19	24	29	38	48	64	76	95	SEE / VEDERE ALFA 10NF
	L	36	39	43	51	63	83	107	120	152
	M/R	150/-	150/-	185/-	185/-	275/-	275/-	380/-	380/-	440/500
	H	84	87	95	99	118	126	143	149	210/185
	h	52	54	69	72	95	101	122	127	151
	P	33	36	43	48	63	68,5	82	88,5	101,5
	f/t	10/6	10/6	12/8	12/8	16/10	16/10	22/14	22/14	30/18
	Kg.	1,6	2	2,6	4,2	6,5	9,2	17,8	20,5	34
	ISO 5211	F03	F03	F03	F03	F05	F05	F07	F07	F10
	ø F	M5	M5	M5	M5	M6	M6	M8	M8	M10
	ø G	36	36	36	36	50	50	70	70	102
	V	34*	37*	40*	48*	60	32	33	35	31
	Z	34*	37*	40*	48*	24	24	24	26	21
	>ø D	88	98	108	128	138	148	178	188	218
VALVOLA PN	N° FORI	4	4	4	4	4	4	4	8	8
	ø FORI	M12	M12	M12	M16	M16	M16	M16	M16	M16
VALVOLA ANSI	N° FORI	4	4	4	4	4	4	4	4	8
	ø FORO METR.	M14	M14	M14	M14	M14	M16	M16	M16	M16
	ø FORO UNC	1/2 ”	1/2 ”	1/2 ”	1/2”	1/2”	5/8 ”	5/8 ”	5/8	5/8 ”

STANDARD EXECUTIONS

CONTAINED BALL INTO THE BODY LENGTH

No protrusion of the ball over the valve length also in closed position

ANTISTATIC DEVICE ACCORDING API6D - ATEX 2014/34/UE

2 spring loaded balls guarantees electrical continuity between all metallic components of the valve

ISO 5211 TOP MOUNTING

Valve top flange is machined for actuator assembly according to ISO 5211

STEM O’RING

Maximum tightness from stem packing minimizing Fugitive Emissions (valve certified TA-LUFT e Fugitive Emissions EN 15848-1/-2)

FIRE SAFE GASKET CONFIGURATION

Materials, gaskets and sealing tested and certified according to EN10497, API6FA, API607 standards

ANTI BLOW-OUT STEM DESIGN

In case of overpressure inside the valve it avoid the stem expulsion and the breakage of the operating element
