A103 PN10-40 / ANSI 150

3 way

A103 PN10-40 / ANSI 150

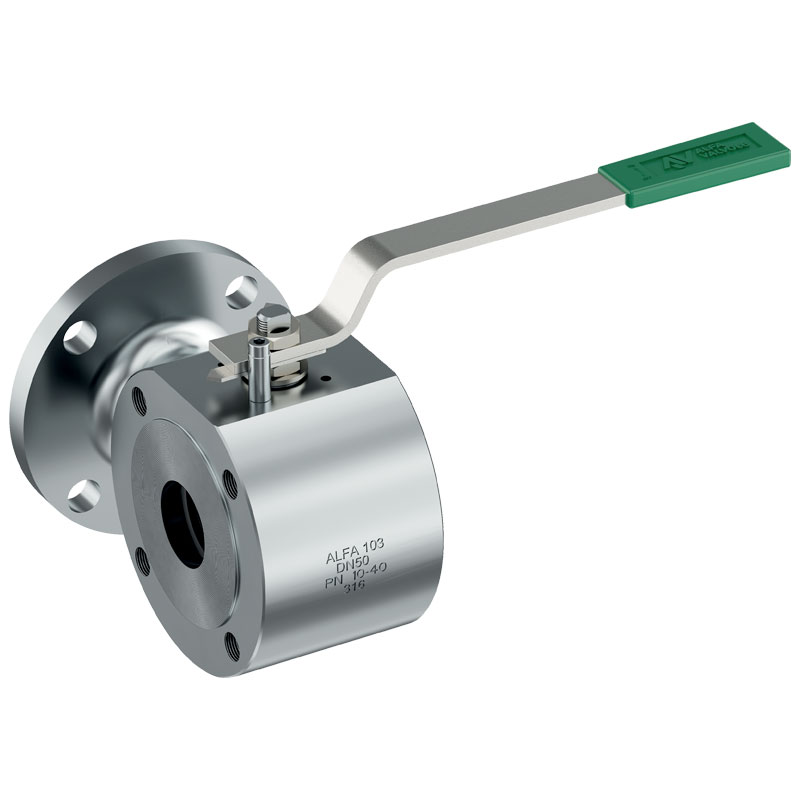

Three-way ball valve, wafer body, bar stock body

Suitable for flow diverting (L Ball) or by-pass / mixing (T ball), acting on 2 or 3 ways
Available with working ways at 90° or 180°, with body construction wafer
Available in different body materials (bar or casting), suitable to be coupled for simultaneous operation (i.e. duplex service)

Ball rotation:90° (180° optional)

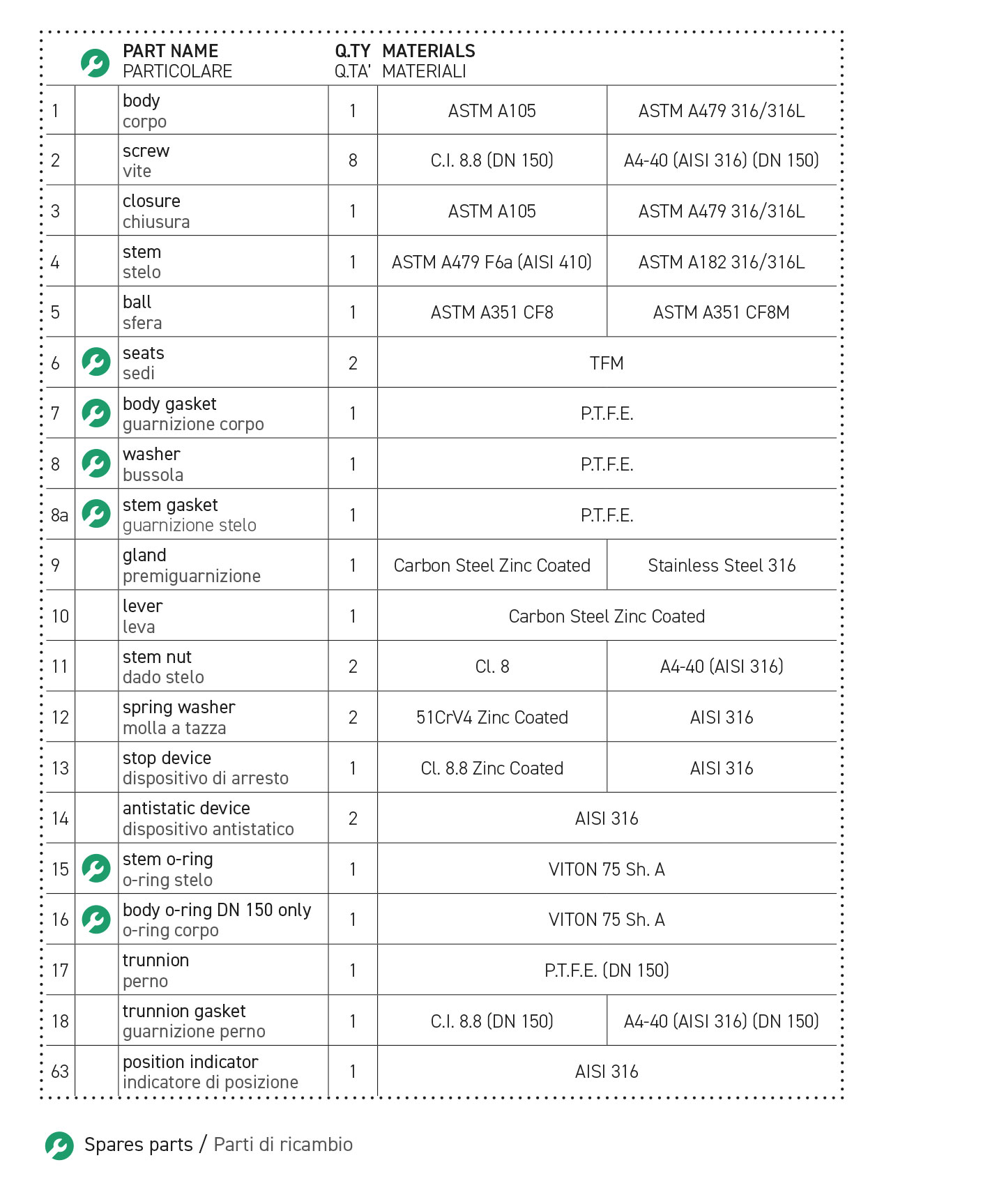

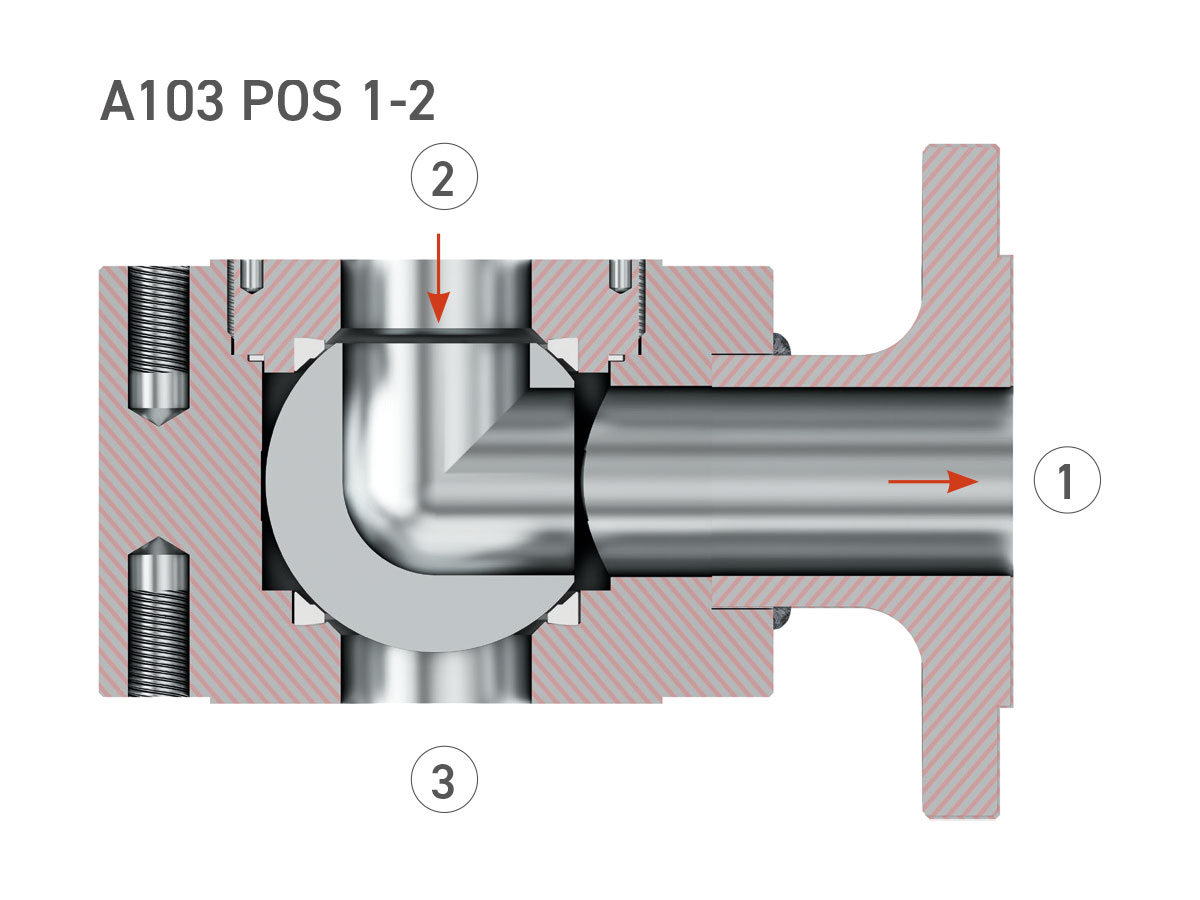

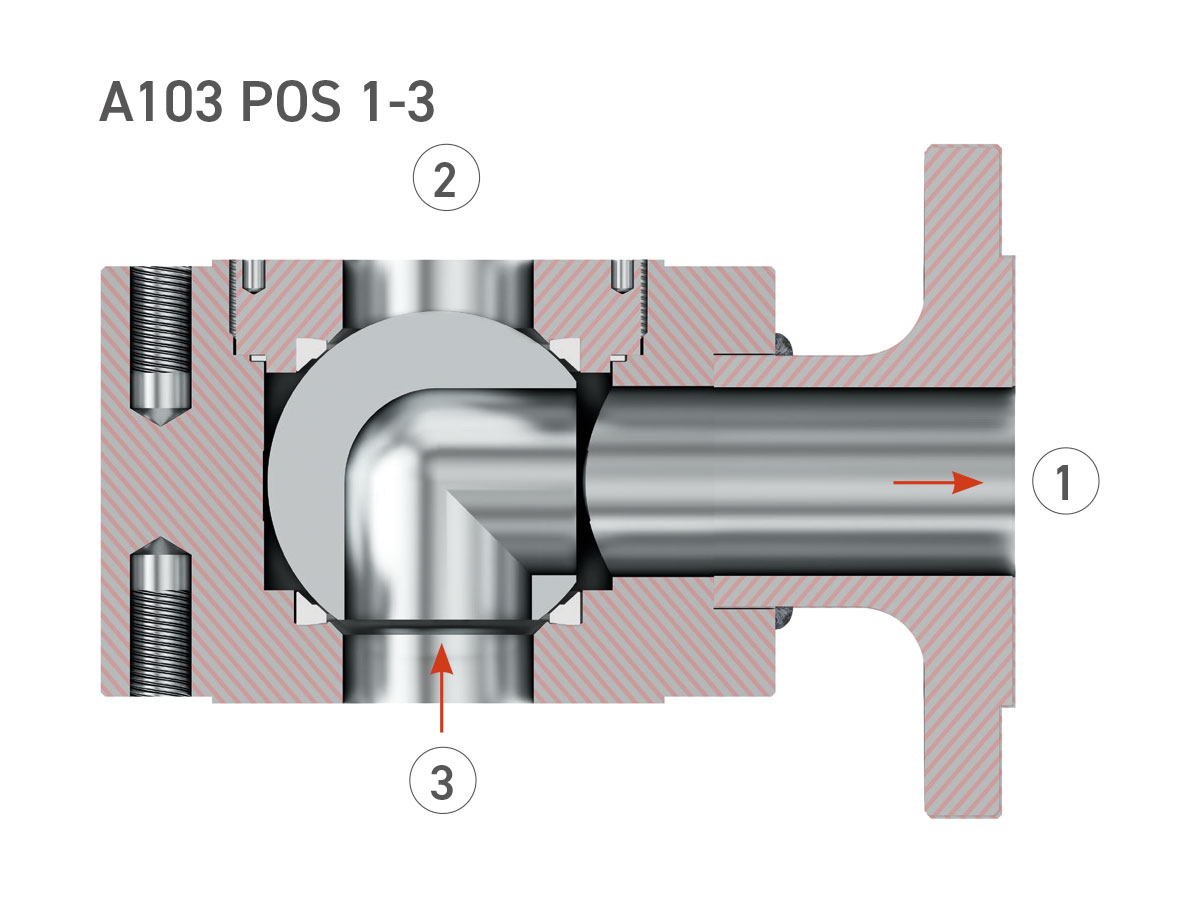

2 seats ball valve:(3^rd way always open), standard execution with L ball
Size Range:1⁄2” ≤ DN ≤ 6” / 15 ≤ DN ≤ 150
Standard pressure range:PN 10-40, ANSI 150 (optional ANSI 300 e 600)
Temperature range:-40°C ≤ T ≤ +220°C
Flange Facing RF according to:ASME B.16.5 or EN 1092-1
Flange drilling, metric holes according:ASME B16.5 or EN 1092-1
Face to face:Manufacturer standard
Design according to:ASME B16.34, EN 12516-1, PED 2014/68/U
Tightness class:Grade A (Zero Leakage) acc. EN 12266-1

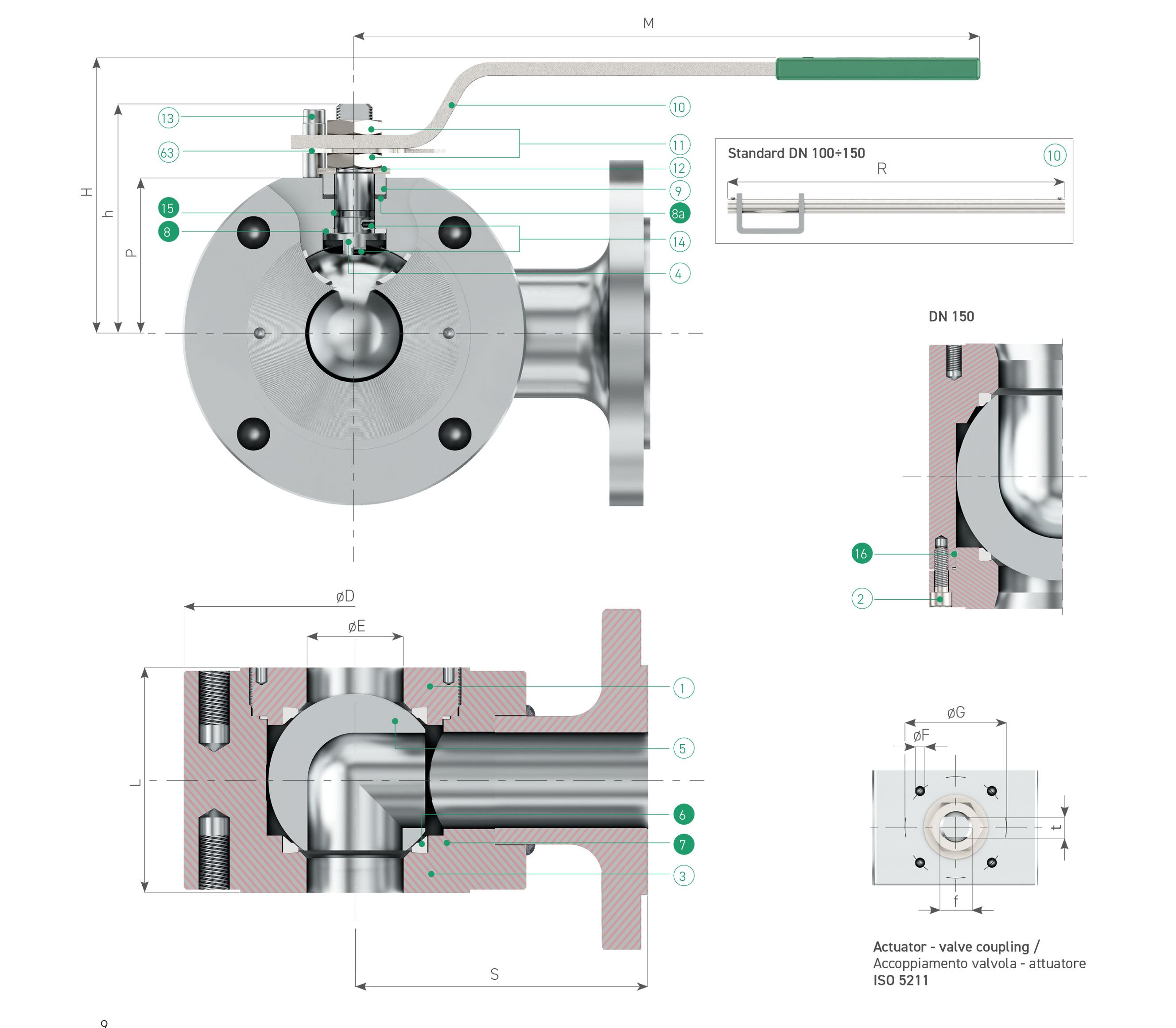

DN	15	20	25	32	40	50	65	80	100	125	150
ø”	½”	¾”	1”	1¼”	1½”	2”	2½”	3”	4”	5”	6”
ø E	10	14	19	14	34	43	60	70	84	110	140
L	50	50	50	60	70	100	115	130	150	185	300
S ANSI 150	85	90	90	105	120	130	150	175	185	200	215
M/R	150/-	150/-	185/-	185/-	275/-	275/-	380/-	380/-	440/500	440/500	-/800
H	84	87	95	99	118	126	143	149	185	200	273
h	52	54	69	72	95	101	122	127	151	167	220
P	33	36	43	48	63	68,5	82	88,5	101,5	120	153
f/t	10/6	10/6	12/8	12/8	16/10	16/10	22/14	22/14	30/18	30/18	45/30
Kg. ANSI 150	3	4	5	6	9	17	22	30	44	65	111
ISO 5211	F03	F03	F03	F03	F05	F05	F07	F07	F10	F10	F14
ø F	M5	M5	M5	M5	M6	M6	M8	M8	M10	M10	M16
ø G	36	36	36	36	50	50	70	70	102	102	140
ø D ANSI 150	89	99	108	128	138	152	178	195	218	258	298
