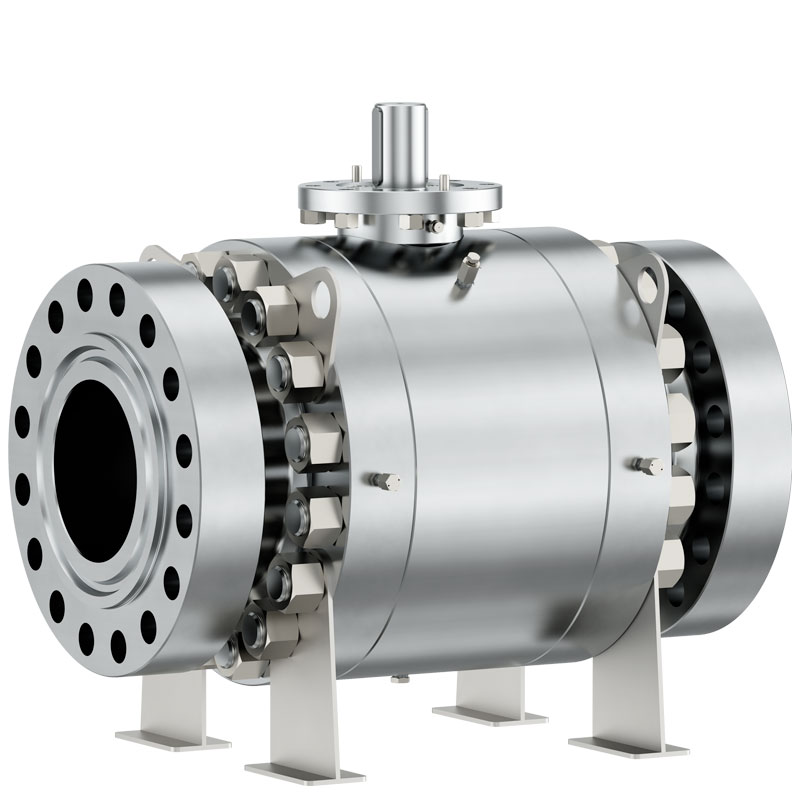

Type B Full bore, reduced bore available on request

The Alfa Valvole trunnion mounted valve series is specially designed to endure the harsh conditions of the oil & gas and petrochemical industries. The robust design tolerates the heavy loads applied to the valve trim that result from of large sizes, high pressures and dynamic temperature cycles.
The trunnion valve series is certified to API 6D (Alfa Valvole monogram #6D-0175) with a valve wall thickness that is in full compliance with ANSI B16.34.
The complete line is fire safe, certified according to API 607, ISO10497 and API 6FA.

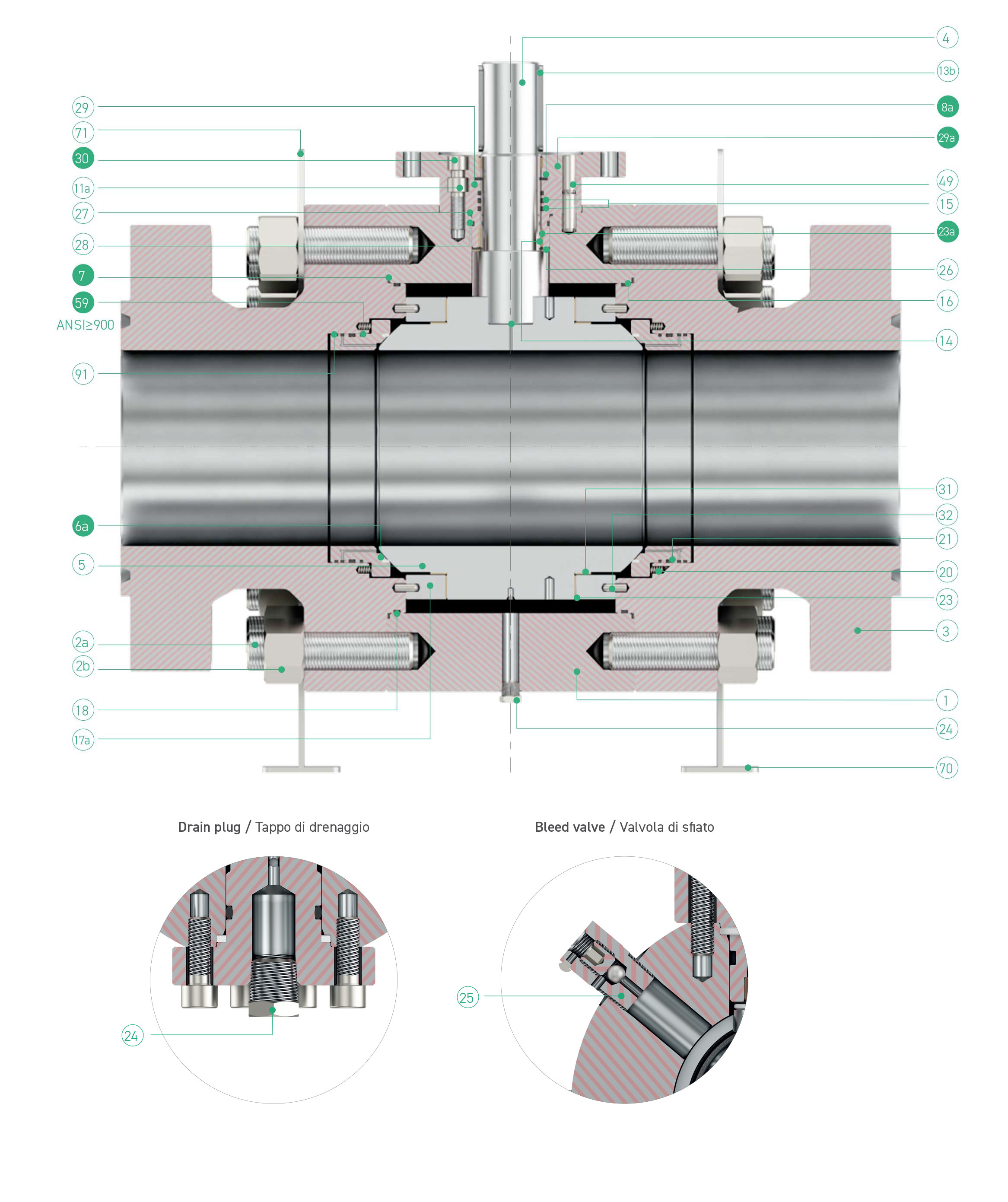

Alfa Valvole offers up to DN 100 a solution of 2-piece valve, over DN 150 uses a robust 3-piece forged design for body and ends. The trunnion valve line is operable under a full differential ANSI class pressure rating, by manually applying a maximum operating force of 360N, both with lever both with handwheel gearbox. A variety of end connectors ensures design flexibility according to customer needs.

• Size and Pressure range: ANSI 150-600 → DN 300-600 | ANSI 900-1500 → DN ≥ 150
  ANSI 2500 → DN 100-250
